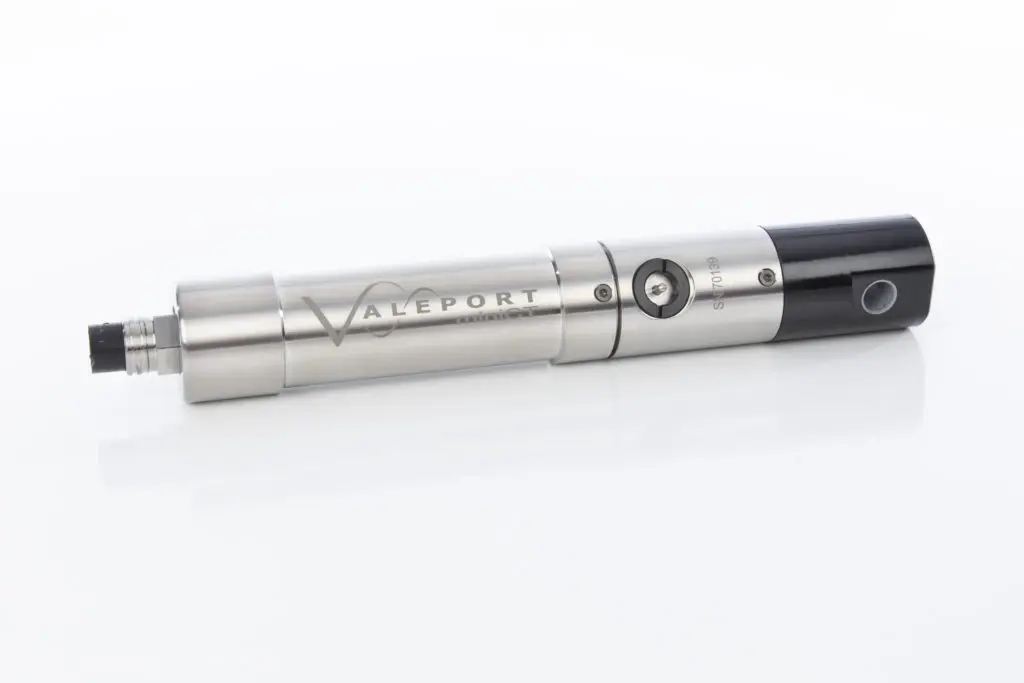

miniCT

Consistent performance and stability under extreme pressure come as standard with the miniCT probe.

Valeport’s latest direct reading Conductivity and Temperature sensor features digital sampling techniques and high strength construction methods. 500m acetal and 6000m titanium versions available, both with RS232 or addressable RS485 data outputs as standard.

Support

miniCT Datasheet
Download
miniCT Operating Manual
Download
DataLog Express Operating Manual
Download

Software

DataLog Express
Download

Technical Specifications

Sensors

Valeport’s digital inductive conductivity sensor boasts several design features that allow it to perform to specification even under the harshest of environments.
Specially selected materials maintain dimensional stability to 6000m water depth, and the unique digital sampling system means that the sensor not only uses very little power, but also that the measurements are totally unaffected by environmental temperature. The miniCT also features a robust, titanium housed PRT temperature sensor.

Conductivity

Type:
Valeport inductive cell
Range:
0 - 80mS/cm
Accuracy:
±0.01mS/cm
Resolution:
0.001mS/cm

Temperature

Type:
Titanium housed PRT
Range:
-5 to +35°C
Accuracy:
±0.01°C
Resolution:
0.001°C

Data Acquisition

Sampling:
Continuous data output, on command or on power up
Data Rate:
1, 2, 4 or 8Hz

Communications

Output:
RS232 & RS485 fitted as standard
Protocol:
4800 to 115200 baud, (8,1,N)
Format:
ASCII text Data

Physical

Materials:
Acetal or titanium housing (as ordered), polyurethane
and ceramic sensor components
Depth Rating:
500m (Acetal)
6000m (Titanium)
Size:
40mmØ x 285mm long
(including connector)
Weight:
0.6kg – Acetal
1kg - Titanium

Electrical

Input:
9 – 28V DC
Power:
<250mW @12v
Connector:
SubConn MCBH6F

Ordering

0660005
miniCT in Acetal housing
Supplied with:
· Interface lead
· Operating manual and transit case
0660006
miniCT in Titanium
Supplied with:
· Interface lead
· Operating manual and transit case
