miniIPS2

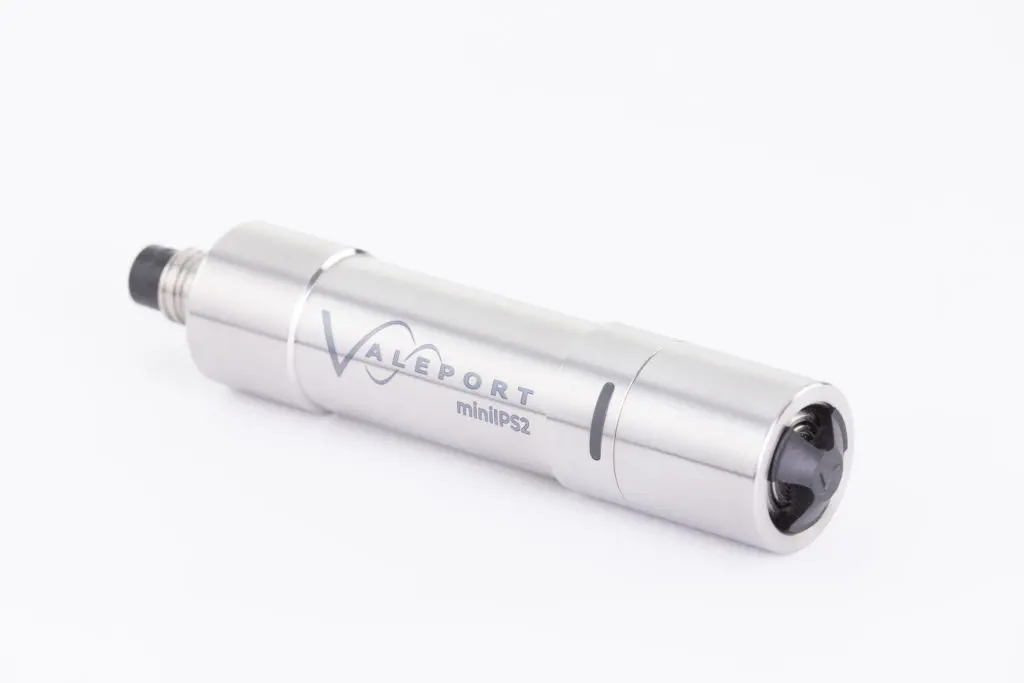

The smart miniIPS2 underwater pressure sensor with accuracy to 0.01%, offers a cost-effective solution to vehicle pilots who require highly accurate depth information in real-time.

Key to the design is the unique interchangeable pressure module that allows users to change pressure transducers for maximising operational specific depth requirements. This innovative pressure module, with integral calibration, can be easily changed in a couple of minutes without opening the instrument and is available in 10, 20, 30, 50, 100, 200, 300, 400 and 600 Bar variants.

Cost effective

Improved performance, long term stability

The pressure sensor module fitted to the miniIPS is a temperature compensated piezo-resistive sensor which delivers the performance previously only available from resonant quartz sensor at a more cost-effective price.

It also brings the added advantages of long-term stability, allowing longer intervals between calibration, and a smaller and more robust construction; complex and vulnerable arrangements of diaphragms and oil-filled capillaries and reservoirs are therefore no longer necessary.

The miniIPS2 is compatible with Valeport’s MIDAS BathyPack and BathyLog software, allowing the depth data to be continually updated for Density variations in the water column.

miniIPS2 annotated diagram

Support

miniIPS2e Ethernet Datasheet
miniIPS2 RS232 & RS485 Datasheet
miniIPS2 & miniIPS2e Operating Manual
Technical drawings

Software

Valeport Configure

Valeport Configure has been introduced to simplify the configuration of instruments prior to deployment.

Valeport Configure App Software Operating Manual

Technical Specifications

Interchangeable Pressure Sensor Module

The pressure sensor module fitted to the miniIPS2 is a temperature compensated piezo-resistive sensor, which delivers the performance previously only available from a resonant quartz sensor. It also brings the added advantages of long-term stability, allowing longer intervals between calibration, and a smaller and more robust construction; complex and vulnerable arrangements of diaphragms and oil-filled capillaries & reservoirs are therefore no longer necessary.

Type
Temperature compensated piezo-resistive
Range
10, 20, 30, 50, 100, 200, 300, 400 or 600 Bar
Accuracy
±0.01% FS
Resolution
0.001% FS

Data Acquisition

Sampling
Continuous, burst average or data on demand
Data Rate
1, 2, 4, 8, 16, 32, 64 or 100Hz in continuous mode and as low as 1 sample per day in burst mode
units
Secondary calibration function allows conversion of dBAR pressure to the required units, such as BAR, metres or feet.
Tare
Tare Function allows correction for atmospheric pressure

Physical

Housing
Titanium (6000m rated)
Size
40mmØ x 190mm (including connector)
Vibration & Shock
Tested to standard ISO 13628-6:2006 (Q2 Levels)
Weight
0.6kg (air)
Connector
SubConn MCBH (titanium)
(other connectors available on request, but subject to lead times)
Shipping
43 x 32 x 22cm, 3kg

Communications

Output
Ethernet / RS232 & RS485
Protocol
4800 to 115200 baud, (8,1,N)
Format
ASCII text Data format compatible with Valeport’s DataLog X2 and BathyLog software, allowing real-time depth correction using Density Profiles

Power Requirements

Input
9 – 28V DC (isolated)
Power
less than 0.4W (40mA @ 12V DC)

Ordering

0760012-XXX
(where XXX is the pressure rating of transducer in Bar) miniIPS2
Fitted with:
• 0.01% piezo-resistive sensor
Supplied with:
• Interface lead
• Operating manual and transit case (standard transit case
will also hold up to three extra pressure modules)
0760013-XXX
(where XXX is the pressure rating of transducer in Bar) miniIPS2e
Fitted with:
• 0.01% piezo-resistive sensor
Supplied with:
• Interface lead
• Operating manual and transit case (standard transit case
will also hold up to three extra pressure modules)
PTSA-XXX
Additional interchangeable pressure modules
Note
XXX denotes pressure transducer range.
Select from 10, 20, 30, 40, 50, 100, 200, 300, 400 or 600 Bar
