pH

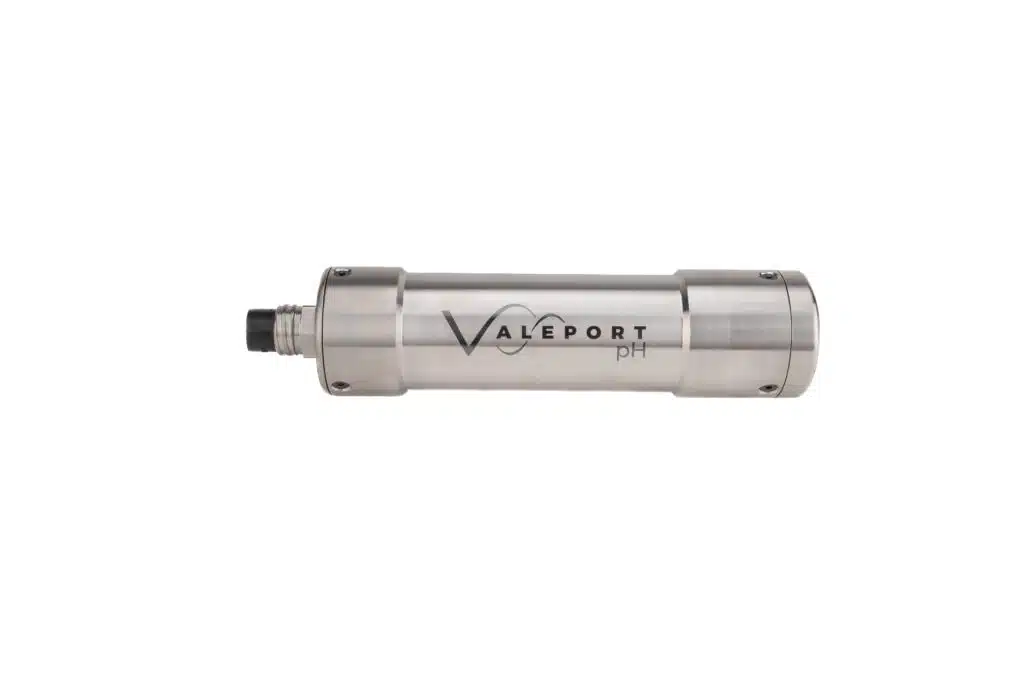

The Teledyne Valeport pH, created in collaboration with ANB Sensors, provides a robust, reliable and calibration-free method of measuring pH within the oceans.

Currently rated to a depth of 1250 m and with an accuracy of ±0.05 pH, the instrument is suitable for a variety of installation techniques, including fixed site monitoring, frames and buoys, and ROVs, AUVs and ASVs. The pH sensor is offered as standard in titanium housing, with variable communications options.

Utilising ANB Sensors patented solid-state ion selective electrode technology, the sensor does not require calibration, as with typical pH measurements collected using glass electrodes. The electrodes simply require periodic light abrasion (dependant on deployment settings) and generate their own antifouling solution around the sensor head, making this a highly durable and reliable solution for long term ocean pH measurements.

Support

pH Datasheet
Download
Technical drawings

Software

Teledyne Valeport Configure
Download
Teledyne Valeport Configure App Software Operating Manual
Download

Technical Specifications

Sensor Specification

Solid state ion-selective electrode/PRT temp

Range:
2-10(pH)/0.5-41ppt (salinity)/-5 - +35°C (temp)
Accuracy:
± 0.05pH/±0.01°C
Resolution:
0.01 pH/0.001°C

Data Acquisition

Sampling
User configurable/polled
Units
pH/ppt/°C

Data Rate

Internal Delay
High Salinity (1-38ppt), Low Salinity (<1ppt)
<60 min
4 minutes (238 s), 4.25 minutes (255 s)
>60 min
3.65 minutes (219 s), 3.8 minutes (227 s)

Physical

Housing:
Titanium
Size:
Ø47 mm x 204 mm
Vibration and Shock:
Tested to ISO 13628-6:2006 (Q2 Levels)
Weight:
1.5 kg (air)
Connector:
SubConn type MCBH6F (titanium)
Shipping
42 cm x 32 cm x 22 cm, 3 kg

Communications

Output:
RS232, RS485, MODBUS
Protocol:
9600-115200 baud (supplied at 115200 baud as standard).

Power Requirements

Input:
9 – 28 V DC Isolated
Power:
<32 mA @ 12 V DC

Software

Teledyne Valeport Configure Software supplied for instrument setup. Teledyne Valeport Terminal/other terminal applications can also be used to communicate with the instrument.

Teledyne Valeport Configure
2.0.31

Ordering

0902001 - XX
Teledyne Valeport pH Sensor, titanium housing, 1250 m depth rated.
Where XX denotes cable length.
Supplied with:
0.5 m interface cable
Sensor abrading tool
Operational manual
Teledyne Valeport Configure software
2 x pots of Instant Ocean Salt
Transit case
