SWiFT CTDplus Turbidity

Designed for a seamless workflow. The new SWiFT CTDplus Turbidity is the latest in Valeport’s popular range of SWiFT profilers and delivers enhanced accuracy and versatility for those requiring combined CTD measurements and Turbidity observations.

Measured CTD with all the benefits of the SWiFT

The new SWiFT CTDplus Turbidity profiler provides survey-grade sensor technology coupled with the convenience of Bluetooth® wireless technology, rechargeable battery and an integral GNSS module to geo-locate each profile.

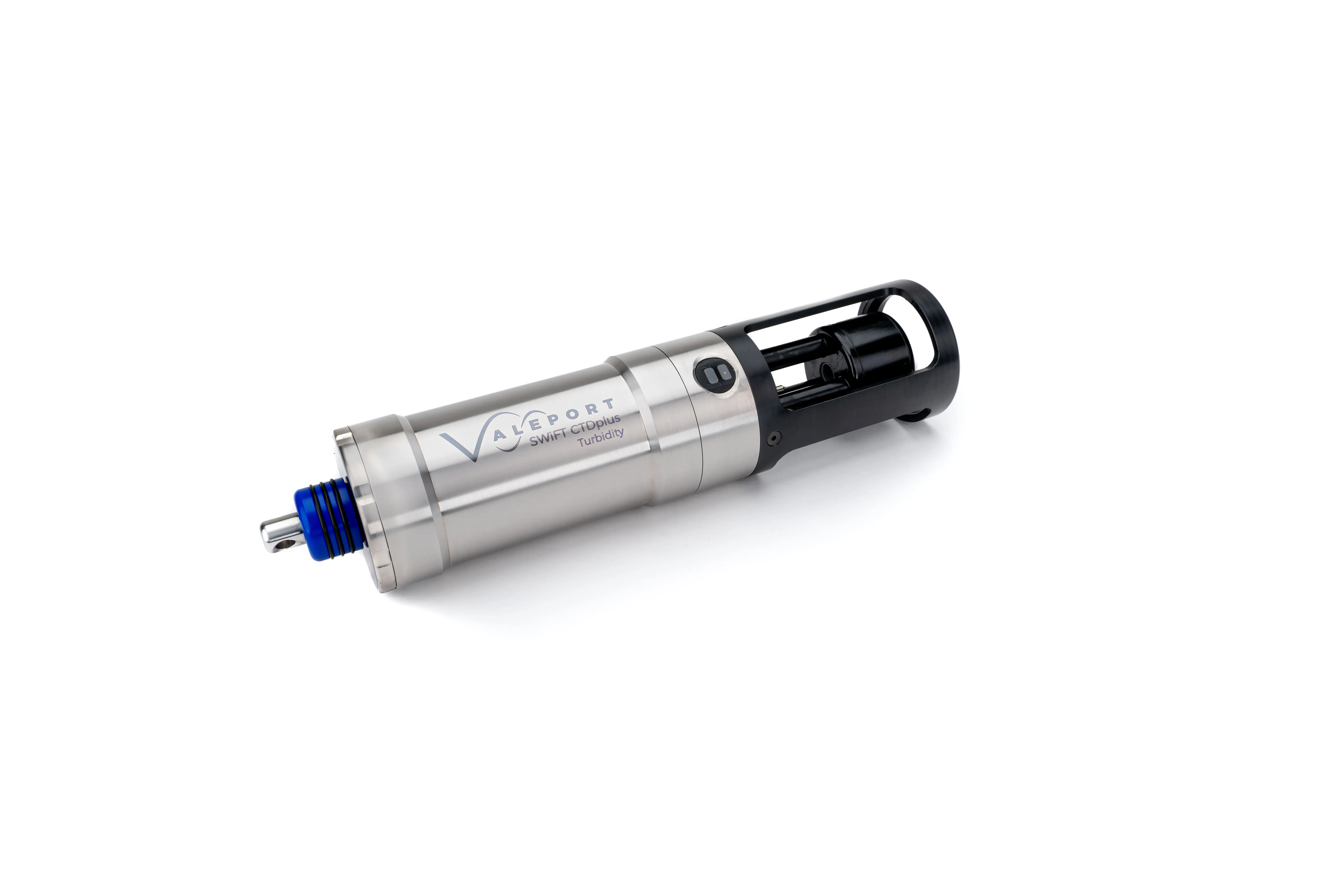

Ease of use is at the heart of the SWiFT range and the new SWiFT CTDplus Turbidity not only makes any problematic battery changes a thing of the past and delivers fully automated data transfer with no user input required, it also features Valeport’s signature SWiFT magnetic switch ring. The switching ring is easy to operate even with cold hands, it simply turns through 90 degrees and reassuringly clicks into position. The end cap features user-friendly LED indications for operational status, GNSS, battery and Bluetooth® wireless technology.

Enhanced accuracy

Using Valeport’s world-leading high accuracy sensor technology to combine sensors for multiple profiles in a single drop, the SWiFT CTDplus Turbidity features a new fast response temperature probe and operates down to 500m as standard, delivering directly measured Conductivity, Temperature and Depth with Turbidity observations. In addition, the SWiFT CTDplus Turbidity will provide computed Salinity, Density and Sound Velocity.

Valeport’s Turbidity technology is essentially two sensors in one. The first is a “classic” nephelometer, using a 90˚ beam angle for turbidity levels between 0 and 2,000 NTU. The second sensor uses Optical Backscatter (OBS) for turbidity levels up to 10,000 NTU. The sensors output data separately and simultaneously at a programmable rate. This means that there is no need to switch ranges as conditions vary. Intelligent sampling and the use of a 24 bit ADC eliminates the need to switch gain.

SOFTWARE

Download and review data with Valeport Ocean

Data can be quickly and easily downloaded wirelessly and uses Valeport’s new Ocean software for Windows, iOS and Android. Data can be instantly shared in industry-standard data formats.

Download on the App Store Get it on Google Play

Download for PC

Multiple Applications

With an operational battery life of up to five days and the convenience of charge via USB, the SWiFT CTDplus Turbidity is intended for offshore, coastal, harbour and inland environmental and hydrographic survey use.

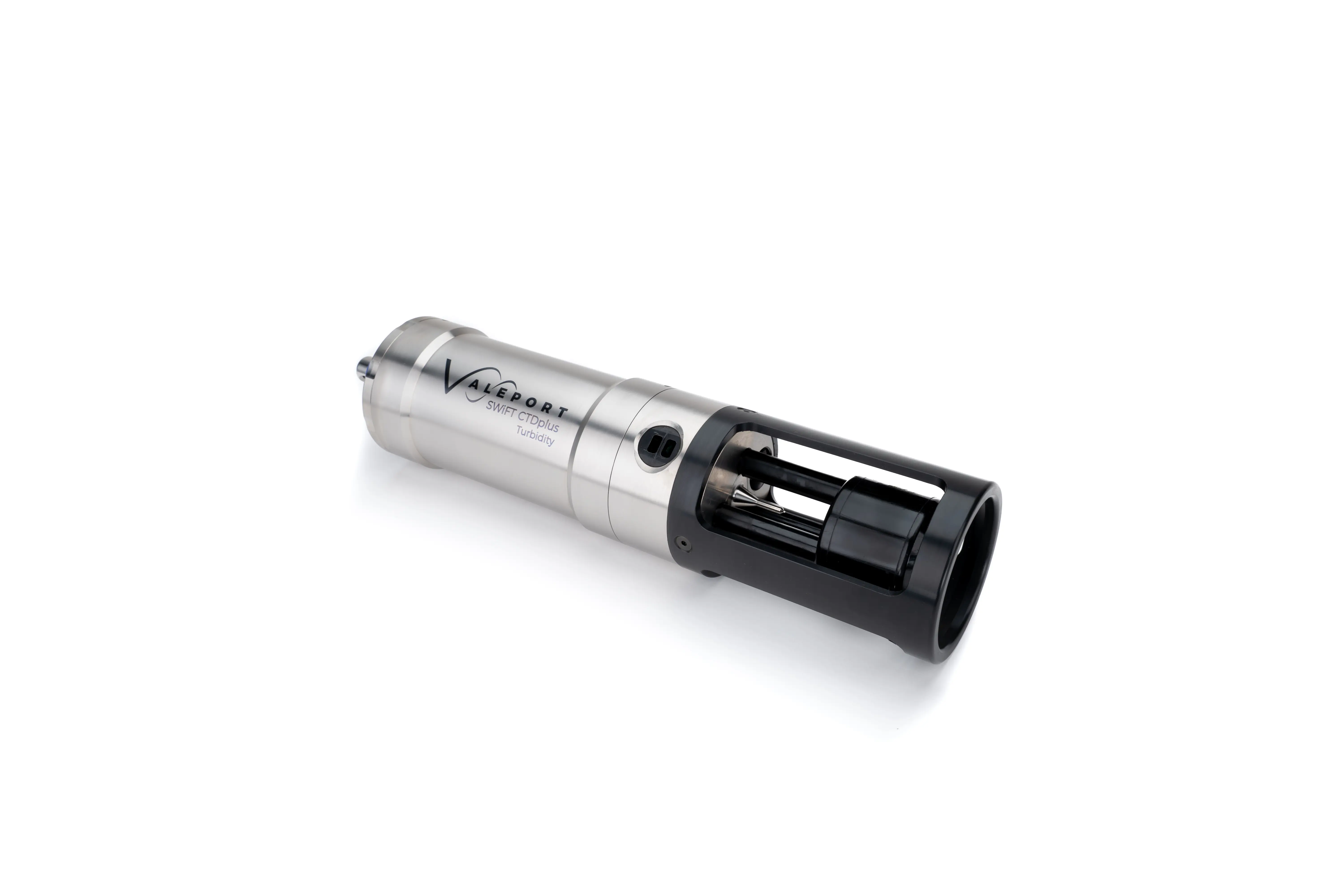

The SWiFT CTDplus Turbidity is robust and portable. Constructed from titanium to provide unmatched durability, the CTD sensors are housed in a strong acetal protective cage.  An optional deployment cage is also available to bolt onto the instrument to secure additional weight and so help the SWiFT CTDplus Turbidity get to depth in fast-flowing currents.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Valeport Ltd is under license. Other trademarks and trade names are those of their respective owners.

Google Play and the Google Play logo are trademarks of Google LLC

Support

SWiFT CTDplus Turbidity Datasheet
SWiFT CTDplus Turbidity Operating Manual
SWiFT lithium ion battery material safety data sheet
SWiFT lithium ion battery test certificate
Technical drawings

Software

Valeport Ocean - Windows

Requires Windows 10.0 or later.

Valeport Ocean - iOS

Requires iOS 8.0 or later.
Requires iPadOS 8.0 or later.

Valeport Ocean - Android

Requires Android 5.0 and up

Technical Specifications

Sensor Specifications

The SWiFT CTDplus Turbidity is fitted with Valeport’s conductivity sensor, temperature compensated piezo-resistive pressure transducer and a new fast response thermistor temperature sensor

Turbidity

Linear Range
Nephelometer: 0 to >1 ,000 NTU - linear response1 OBS: 0 to >4,000 NTU - linear response 1 & 2 1 depending on suspended material 2 >4,000 NTU has a non-linear monotonic response that allows derivation of higher values using look-up tables\secondary calibration
Linearity
0.99 R2
Minimum Detection Level
0.03 NTU (Nephelometer)

Conductivity

Range
0-80 mS/cm
Resolution
0.001 mS/cm
Accuracy
±0.01 mS/cm

Temperature - Thermistor

Range
-5°C – +35°C
Resolution
0.001°C
Accuracy
±0.01°C
Response
<100m/s

Pressure

Range
50 Bar
Resolution
0.001% FS
Accuracy
±0.01% FS

Calculated Parameters and Accuracy

Calculations based on the UNESCO international standard algorithm and Chen and Millero equation

Sound Velocity
~0.25 m/s
Salinity
±0.01 PSU
Density
±0.01 kg/m³

Physical

Materials
Housing - Titanium | Sensor Guard - Acetal |
Temperature Sensor - Titanium | Pressure Sensor - Titanium |
Conductivity Sensor - Polyurethane coated titanium with ceramic core
Depth Rating
500 m
Dimensions
ø78 mm x Length 350mm
Weight
2.7 kg (in air) / 1.65 kg (in water)

Communications (set up and data offload)

USB
Serial
Bluetooth wireless technology
v4 - low energy

Electrical

Battery
Internal rechargeable Li-ion battery pack
Battery life
SWiFT Battery endurance depends on the sampling scenario used – contact Valeport for more information.

95 days endurance 2 profiles per day to 100 m*
33 days - 3 profiles a day to 500 m*
1.7 days continuous running (normal power mode)

(*Utilising Bluetooth Sleep mode)
Charging
USB
Typically, 1 hour fast charge will give 12 hours operation

Software

iOS and Android Valeport Ocean App for Bluetooth compatible mobile devices – instrument set up, data offload, display and translation to common data formats. Valeport’s Ocean PC software, with both USB cable and Bluetooth connectivity, for instrument setup, data extraction, display and translation to common data formats.

Instrument and data time is synchronised to GNSS, UTC

Ordering

0660049-50-TU
SWiFT CTDplus Turbidity Profiler
Titanium housing rated to 500 m
Supplied with
PC Bluetooth adapter
USB interface and charging cable 1.5 A charger
Valeport Ocean software
Operating manual
System transit case
