SWiFT SVP

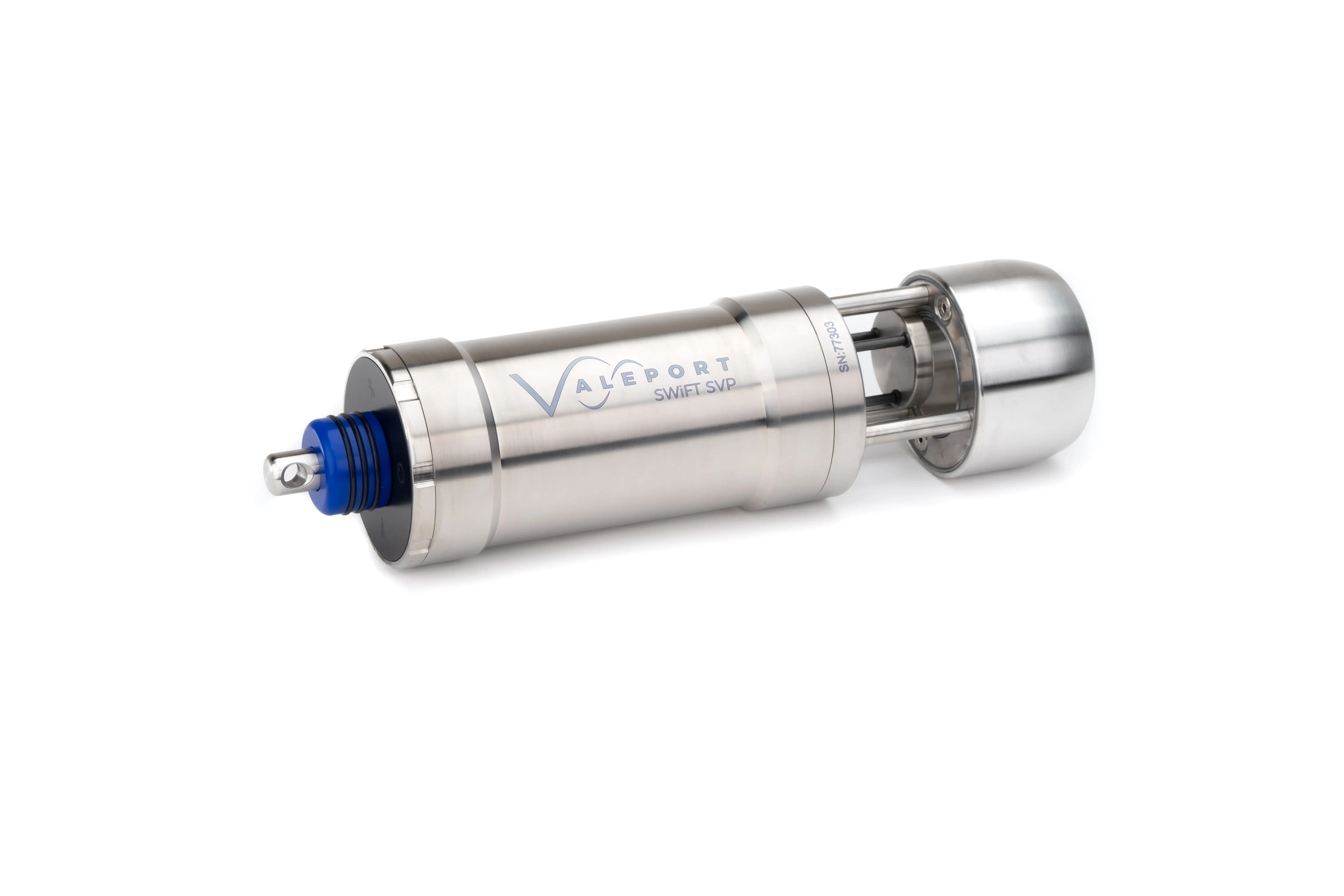

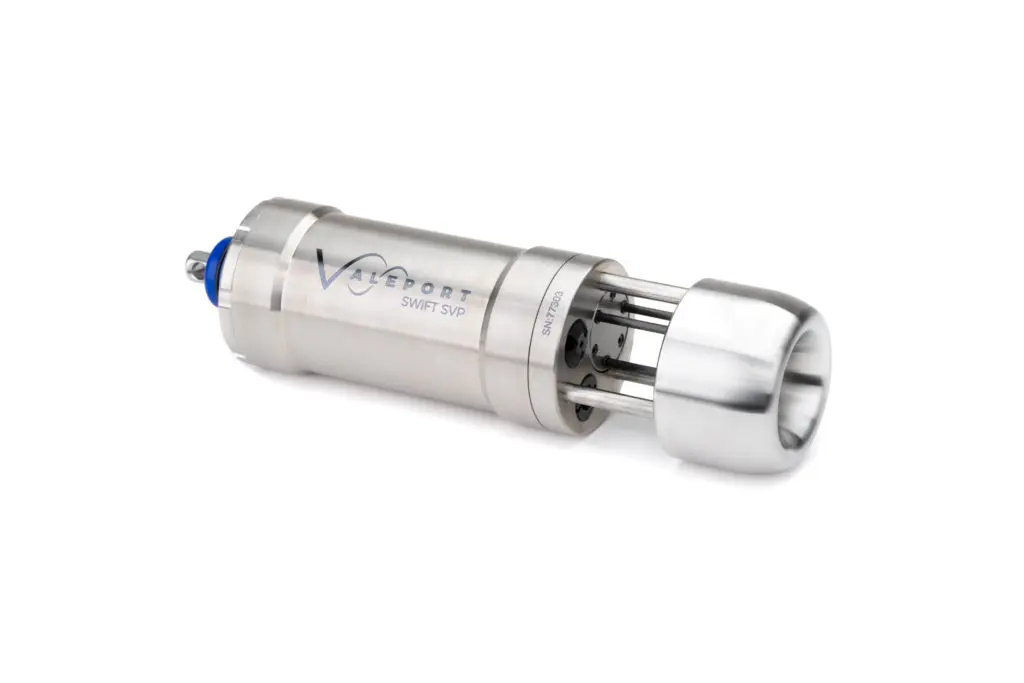

Designed for coastal, harbour and inland hydrographic survey use, the SWiFT SVP makes a seamless workflow a reality in a compact, robust and portable package.

Now rated to 500m as standard with 0.01% FS accuracy, it has integral GPS to geo-locate every profile. This new compact unit features high accuracy SV, Pressure and Temperature as normal, and adds integral GPS, re-chargeable battery, LED status indications for GPS, battery and communications. Data can be easily and quickly downloaded, reviewed and translated to common data formats wirelessly via Bluetooth Smart using the SWiFT APP on iOS devices where data can be instantly shared via FTP, email and cloud services. Valeport’s Connect software for PC use will also support the SWiFT SVP.  Battery endurance is up to a week with easy charging via USB


Support

SWiFT SVP Datasheet
SWiFT SVP Operating Manual
Connect Operating Manual

Software

Connect
1.0.7.0
Connect iOS
1.5.12

Technical Specifications

Sensor Specifications

The SWiFT SVP is fitted with Valeport’s digital time of flight sound velocity sensor, temperature compensated piezo-resistive pressure transducer and a PRT temperature sensor.

Sound Velocity

Range
1,375-1,900 m/s
Resolution
0.001 m/s
Accuracy
±0.02 m/s

Pressure

Range
50 Bar
Resolution
0.001% FS
Accuracy
±0.01% FS

Temperature

Range
-5°C - +35°C
Resolution
0.001°C
Accuracy
±0.01°C

Calculated Parameters and Accuracies

Calculations based on Valeport’s proprietary DASH formula

Conductivity
±0.05 mS/cm
Salinity
±0.05 PSU
Density
±0.05 kg/m³

Physical

Materials
Titanium | Stainless Steel
deployment weight
Depth Rating
500m
Dimensions
ø78mm x Length 264mm
Weight
2.0kg (in air) / 0.9kg (in water) |
3.0kg (in air) / 1.8kg (in water) with deployment weight

Communications (set up and data offload)

USB Serial Bluetooth v4 - low energy

Electrical

Battery
Internal rechargeable Li-ion battery pack
Battery life
Up to 5 days operations
Charging
USB
Typically, 1 hour fast charge will give 12 hours operation

Software

iOS App for Bluetooth compatible mobile devices – instrument set up, data offload, display and translation to common data formats, Android to follow. Valeport’s Connect PC software, with both USB cable and Bluetooth connectivity, for instrument setup, data extraction, display and translation to common data formats. Instrument and data time is synchronised to GPS, UTC.

Ordering

0660047 50
SWiFT SVP Profiler
Titanium housing rated to 500m
Supplied with
Deployment weight
PC Bluetooth adapter
USB interface and charging cable
1.5 A charger
Valeport Connect software
Operating manual

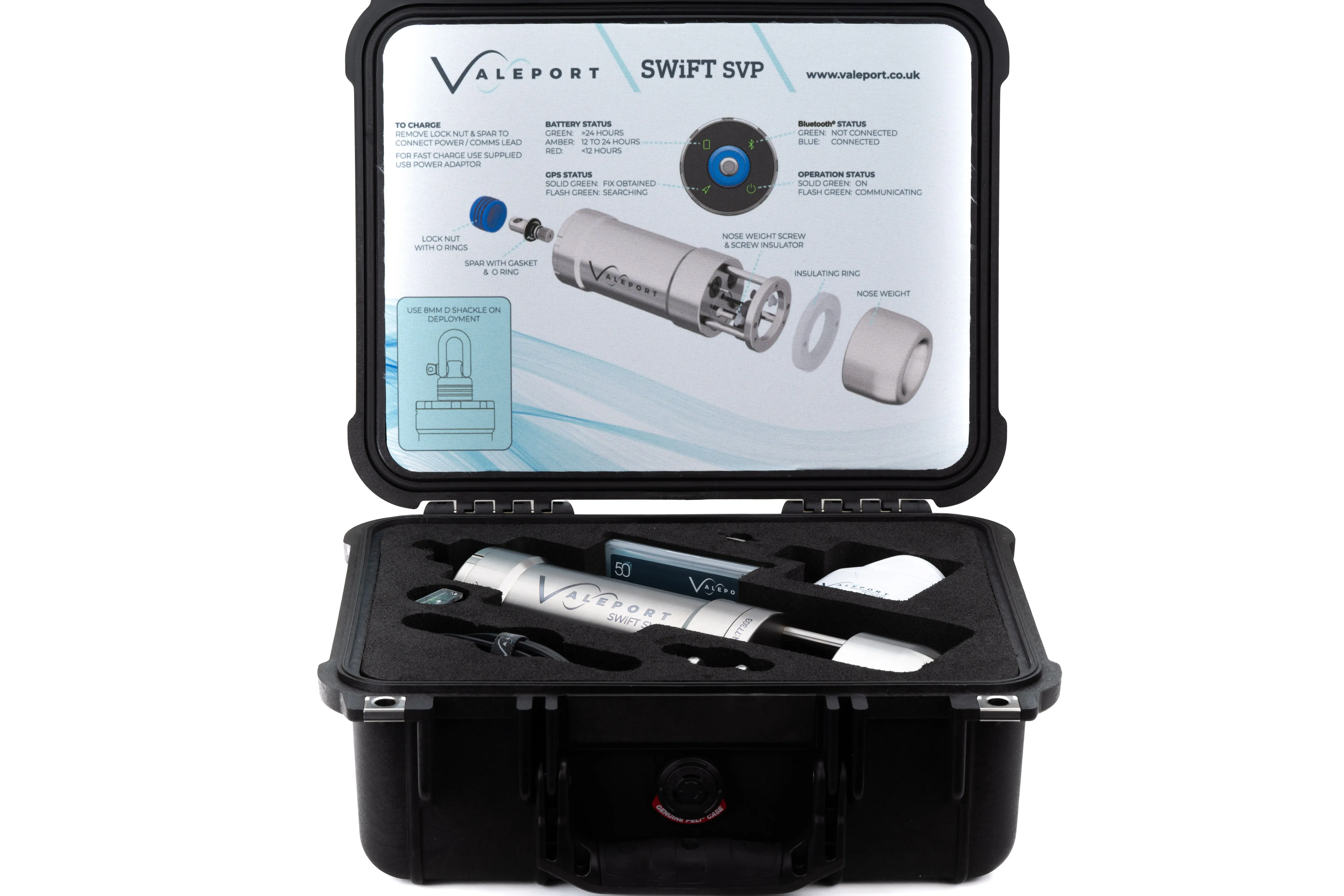

System transit case
