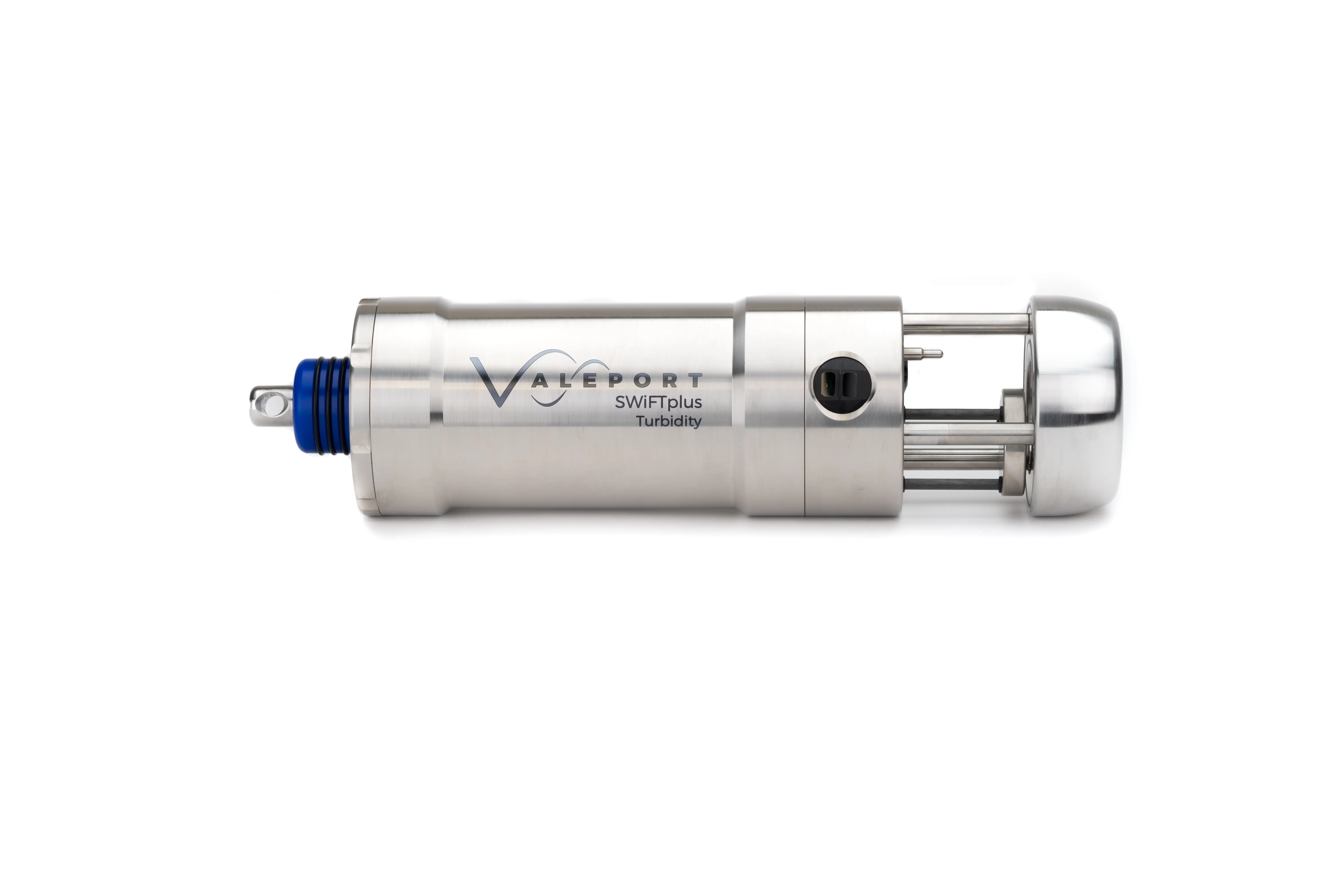

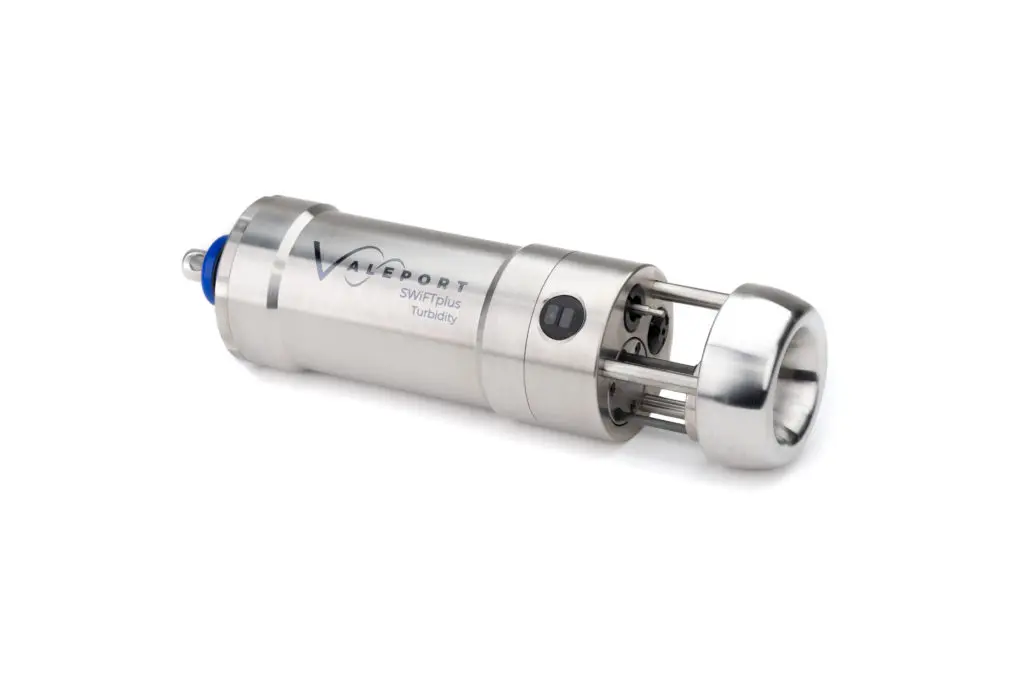

SWiFT SVPplus Turbidity

Valeport’s SWiFT SVPplus Multi-Parameter Profiler with a Turbidity sensor combines survey-grade sound speed, temperature and pressure sensor technology with Turbidity observations.

The package is completed with the convenience of Bluetooth® connectivity, rechargeable battery and an integral GNSS module to geo-locate each profile.

  • Multi-Parameter Profiler
    • CTD, Sound Speed, Salinity, Density
    • Up to 32Hz sampling rate
    • Dual Optical Backscatter (OBS) and Nephelometer Turbidity Sensor
  • Bluetooth and USB connectivity
  • Integral GNSS receiver for geo-location of profile and time synchronisation
  • Rechargeable Lithium-ion Battery
  • Dedicated PC software and iOS portable device App

Valeport’s Turbidity technology is essentially two sensors in one. The first is a “classic” nephelometer, using a 90˚ beam angle for turbidity levels between 0 and 2,000 NTU. The second sensor uses Optical Backscatter (OBS) for turbidity levels up to 10,000 NTU. The sensors output data separately and simultaneously at a programmable rate. This means that there is no need to switch ranges as conditions vary. Intelligent sampling and the use of a 24 bit ADC eliminates the need to switch gain.

SOFTWARE

Download and review data with Valeport Ocean

Data can be quickly and easily downloaded wirelessly and uses Valeport’s new Ocean software for Windows, iOS and Android. Data can be instantly shared in industry-standard data formats.

Download on the App Store Get it on Google Play

Download for PC

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Valeport Ltd is under license. Other trademarks and trade names are those of their respective owners.

Support

SWiFT SVPplus Turbidity Datasheet
SWiFT SVPplus Operating Manual
Technical drawings

Software

Valeport Ocean - Windows

Requires Windows 10.0 or later.

Valeport Ocean - iOS

Requires iOS 8.0 or later.
Requires iPadOS 8.0 or later.

Valeport Ocean - Android

Requires Android 5.0 and up

Technical Specifications

Sensor Specification

Turbidity

Linear Range
Nephelometer: 0 to >1 ,000 NTU - linear response1 OBS: 0 to >4,000 NTU - linear response 1 & 2 1 depending on suspended material 2 >4,000 NTU has a non-linear monotonic response that allows derivation of higher values using look-up tables\secondary calibration
Linearity
0.99 R2
Minimum Detection Level
0.03 NTU (Nephelometer)

Conductivity#

Range
0 - 80 mS/cm
Resolution
0.001 mS/cm
Accuracy
±0.05 mS/cm

Temperature (Platinum Resistance Thermometer)

Range
-5°C - +35°C
Resolution
0.001°C
Accuracy
±0.01°C

Pressure (Temperature compensated piezo-resistive pressure transducer)

Range
50 Bar
Resolution
0.001% FS
Accuracy
±0.01% FS

Sound Velocity (Digital time of flight sensor)

Range
1375 – 1900 m/s
Resolution
0.001 m/s
Accuracy
±0.02 m/s

Salinity#

Range
0 - 42 PSU
Resolution
0.001 PSU
Accuracy
±0.05 PSU

Density

Range
990 - 1035 kg/m3
Resolution
0.001 kg/m3
Accuracy
±0.05 kg/m3
#Calculated Accuracies. Calculations based on Valeport’s proprietary DASH formula.

Physical dimensions

Materials
Housing: Titanium
Sinker weight: Stainless steel
Optical window: Sapphire glass
Depth rating
500m
Dimensions
Ø78mm x Length 307mm (with sinker weight)
Weight
2.7kg (in air) / 1.7kg (in water) including optional sinker weight

Communications

(set-up and data offload)

Bluetooth v4
low energy
USB Serial

Electrical

Battery
Internal rechargeable Li-ion battery pack
Battery life
SWiFT Battery endurance depends on the sampling scenario used – contact Valeport for more information.

100 days endurance 2 profiles per day to 100 m*
42 days - 3 profiles a day to 500 m*
2 days continuous running (normal power mode)

(*Utilising Bluetooth Sleep mode)
Charging
USB - Supplied mains AC adapter

Software

iOS and Android Valeport Connect Pathway Edition for Bluetooth compatible mobile devices – instrument set up, data offload, display and translation to common data formats. Valeport’s Ocean PC software, with both USB cable and Bluetooth connectivity, for instrument setup, data extraction, display and translation to common data formats.

Instrument and data time is synchronised to GNSS, UTC

Ordering

0660047-50-Tu
SWiFT SVPplus profiler with Turbidity sensor - 500 m rated
Supplied with:
· Deployment weight
· PC Bluetooth adapter
· USB interface and charging cable and charger
· Valeport Ocean software
· Transit Case
