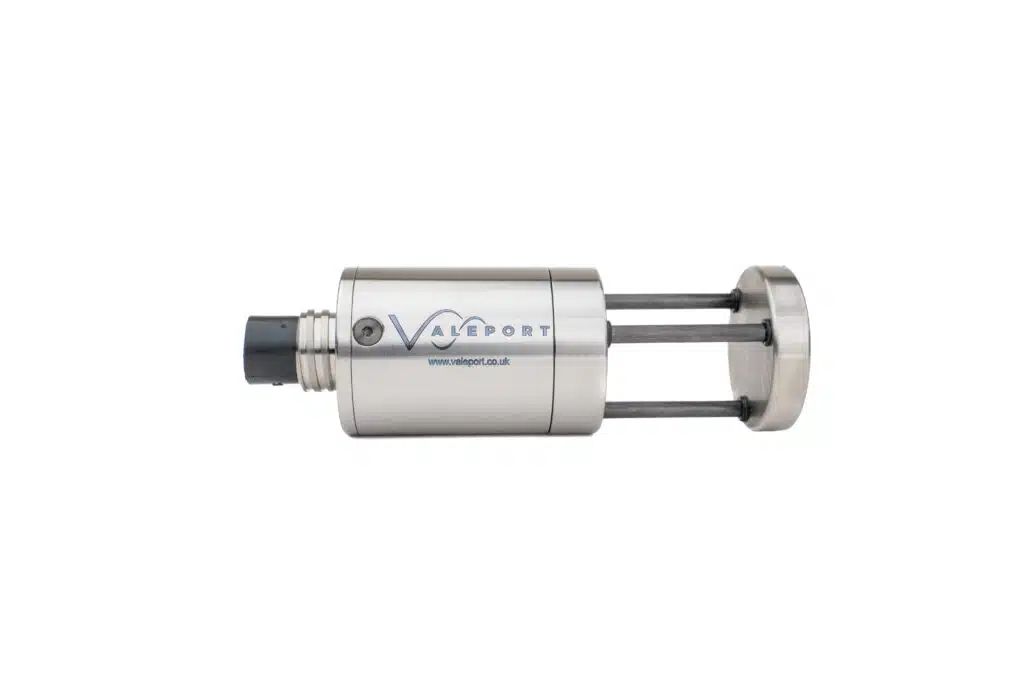

ultraSV OEM Sound Velocity Sensor

The next generation of sound velocity sensor, the UltraSV, is ultra-fast, ultra-compact, ultra-dependable.

Redesigned from the connector up, it offers a truly smart and exchangeable sound velocity sensor without compromise. Our unique digital signal processing technique virtually eliminates signal noise, and gives almost instantaneous response; the digital measurement is also entirely linear, giving predictable performance under all conditions.

Support

ultraSV Datasheet
Download
ultraSV Operating Manual
Download
DataLog X2 Operating Manual
Download

Software

DataLog X2
Download

Technical Specifications

Performance

Range:
1375 – 1900 m/s
Resolution:
0.001 m/s
Accuracy:
±0.020 m/s
Sample Duration:
~30 μS @1500 m/s
Sample Rate:
Up to 300 Hz

Electrical

Voltage:
5V DC regulated ±3%
Power:
< 250mW
Connector:
SubConn MCBH6F

Communications

Output:
RS485 \ TTL
Protocol:
4800 to 230400 baud (8,1,N)
Format:
Proprietary NMEA string

Physical

Depth Rating:
200m
Size:
38mmØ x 120mm
(including connector)
Weight
<0.3 kg in air
Housing & Bulkhead:
Titanium
Transducer Window:
Titanium
Sensor Legs:
Carbon Composite
Reflector Plate:
Titanium

Ordering

06520550
ultraSV OEM Sound Velocity Sensor
Note:
All systems supplied with a manual
No cables are supplied
contact Valeport for options
