UV-SVP

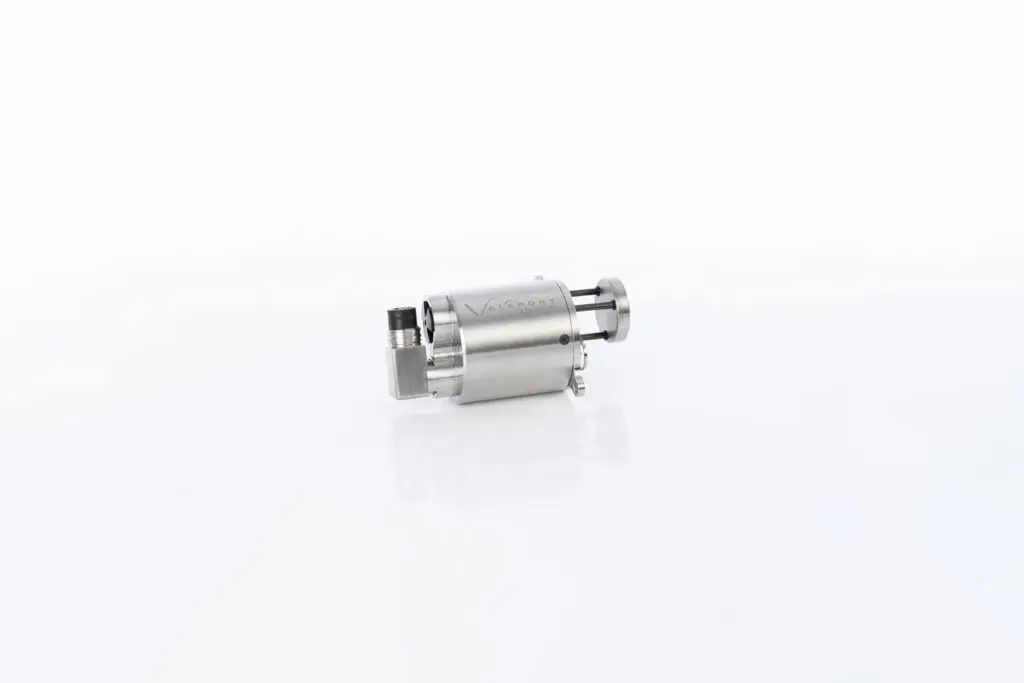

UV-SVP - Sound Velocity, Temperature and Pressure with calculated Salinity & Density for an Underwater Vehicle

Designed for underwater vehicles where space is at a premium, the compact UV-SVP features Valeport’s Time of Flight technology that delivers SVP with calculated salinity and density data. A compact package weighing just 750 grams (in air), the lightweight titanium housing gives a depth rating of 3000m. A wide range (9-30V DC) isolated power supply and RS232 communications complete the package.

Support

UV-SVP Datasheet
Download
UV-SVP Operating Manual
Download
DataLog X2 Operating Manual
Download
Technical drawings

Software

DataLog X2
Download
Valeport Configure
Download

Valeport Configure has been introduced to simplify the configuration of instruments prior to deployment.

Valeport Configure App Software Operating Manual
Download

Technical Specifications

Sensors

Each sound velocity measurement is made using a single pulse of sound traveling over a known distance, so is independent of the inherent calculation errors present
in all CTDs. Our unique digital signal processing technique virtually eliminates signal noise, and gives an almost instantaneous response; the digital measurement is also entirely linear, giving predictable performance under all conditions.

Sound Velocity

Range:
1375 - 1900m/s
Resolution:
0.001m/s
Accuracy:
±0.020m/s

Temperature

Range:
-5°C to +35°C
Resolution:
0.001°C
Accuracy:
±0.01°C

Pressure

Range:
10, 30, 100, 300Bar
Resolution:
0.001% range
Accuracy:
±0.01% range

Calculated Parameters and Accuracies Calculations based on Valeport’s proprietary DASH formula

Salinity
Salinity ±0.05 PSU
Density
Density ±0.05 kg/m³

Data Output

RS232 & RS485 output, selected by command code. RS232 data may be taken directly into a PC over cables up to 200m long, whereas RS485 is suitable for longer
cables (up to 1000m) and allows for multiple addressed units on a single cable.

Baud Rate:
19200 - 115200
Protocol:
8 data bits, 1 stop bit, No parity, No flow control

Electrical

Voltage:
8 – 30V DC Isolated
Power:
0.35W
Connector:
SubConn MCBH6F

Physical

Depth Rating:
3000m
Weight:
5 kg (in air)
Housing & Bulkhead:
Titanium

Ordering

06520549-XX
Supplied with:
· 0.5m interface cable
· Operation manual and transit case
Note:
XX denotes pressure transducer range.
Select from 10, 30, 50, 100, 300, or 600Bar
