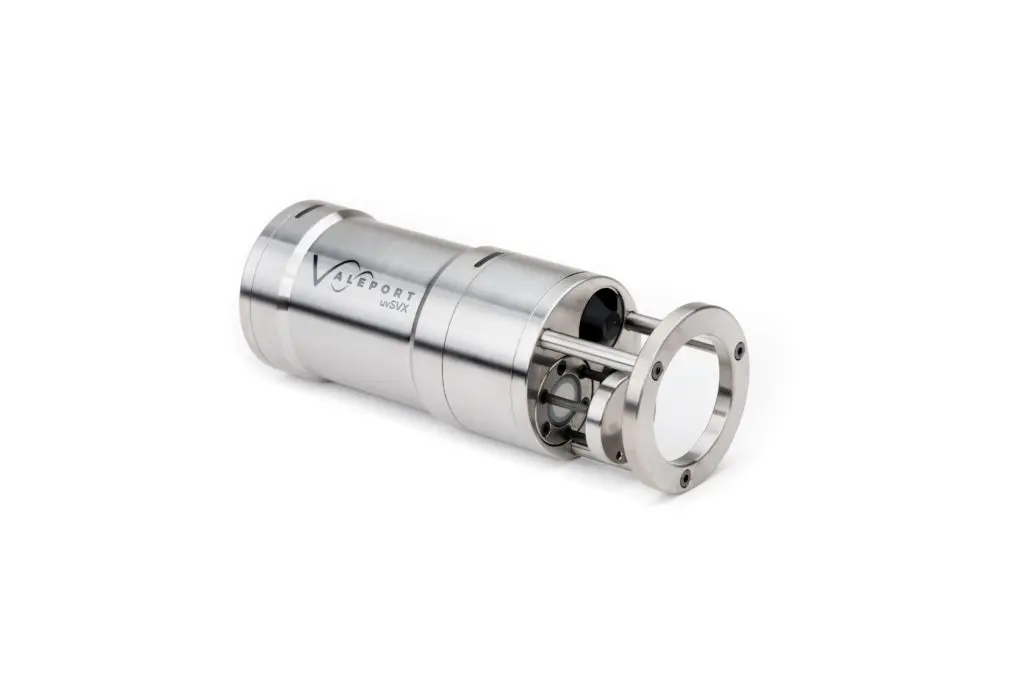

uvSVX - Sound Velocity, Temperature and Pressure with calculated Salinity & Density for an Underwater Vehicle

Designed for underwater vehicles where space is at a premium, the compact uvSVX features Valeport’s Time of Flight technology that delivers SVP with calculated salinity and density data.

Accuracy

Interchangeable Pressure Sensors

High accuracy data is assured with the addition of Valeport’s uniquely interchangeable pressure module that allows users to maximise operationally specific depth requirements.

This advanced, calibrated pressure module, is quickly and easily changed whilst in the field, using the Valeport supplied adapter and without opening the instrument. Delivering accuracy to 0.01%, the interchangeable pressure transducer is available in 10, 20, 30, 50, 100, 200, 300, 400 and 600 Bar variants.

Using the latest developments in digital sensor technology the new uvSVX is lightweight, housed in titanium with a depth rating of 6000m and delivers reliable, accurate performance under all conditions.

Support

uvSVX Datasheet
uvSVX Operating Manual
Technical drawings

Software

Valeport Configure
1.0.42

Valeport Configure has been introduced to simplify the configuration of instruments prior to deployment. It can be used instead of DataLog x2 for uvSVX and miniIPS2 immediately.
Some important points to note about the download
· Presently available for windows 10 PC only
Functionality
· Instrument set up and set to work

DataLog X2
1.1.0.1315

Technical Specifications

Sensors

Each sound velocity measurement is made using a single pulse of sound traveling over a known distance, so is independent of the inherent calculation errors present in all CTDs. Our unique digital signal processing technique virtually eliminates signal noise, and gives an almost instantaneous response; the digital measurement is also entirely linear, giving predictable performance under all conditions.

Sound Velocity

Range
1375 - 1900m/s
Resolution
0.001m/s
Accuracy
±0.02m/s

Temperature

Range
-5°C to +35°C
Resolution
0.001°C
Accuracy
±0.01°C

Interchangeable Pressure Sensor Module

Range
10, 20, 30, 50, 100, 200, 300, 400 & 600 Bar
Resolution
0.001% range
Accuracy
±0.01% range
Units
dBar (default option) | Meters | Feet

Calculated Parameters and Accuracies

Calculations based on Valeport’s proprietary DASH formula

Salinity
Salinity ±0.05 PSU
Density
Density ±0.05 kg/m³

Data Output

RS232 & RS485 or Ethernet output. RS232 data may be taken directly into a PC over cables up to 200m long, whereas RS485 is suitable for longer cables (up to 1000m) and allows for multiple addressed units on a single cable

Baud rate
2400-230400
Protocol
8 data bits, 1 stop bit. No parity. No flow control
Modbus
8N1 or 8E1 framing
Format
RS232 & RS485
ASCII text data format compatible with Valeport DataLog X2 and BathyLog
software, allowing real-time depth correction using Density Profiles

Physical

Housing
Titanium
Size
78mmØ x 218mm (excluding connector)
Connector
SubConn MCBH6F
Vibration & Shock
Tested to standard ISO 13628-6:2006 (Q2 Levels)
Depth Rating
6000m
Weight
1.9kg (in air)
Shipping
42 x 32 x 30, 5kg

Electrical Voltage

Input
9-28V DC (isolated)
Power
RS232 & RS485 version - 30mA @ 12V DC
Ethernet version - 130mA @ 12V DC

Ordering

0650030-XXX
for RS232/RS485 version
Supplied with:
• 0.5m interface cable
• Operation manual and transit case
0650031-XXX
for Ethernet version
Supplied with:
• 0.5m interface cable
• Operation manual and transit case
Note
XX denotes pressure transducer range.
Select from 10, 20, 30, 50, 100, 200, 300, 400 or 600 Bar
Two communication options of the uvSVX will be offered,
RS232 / RS485 and Ethernet
PTSA-XXX
Additional interchangeable pressure modules
Note
XX denotes pressure transducer range.
Select from 10, 20, 30, 50, 100, 200, 300, 400 or 600 Bar
