TideStation – Permanent

The TideStation is a self-contained Tidal Observation solution packaged to optimise performance, be flexible in its configuration and simple to install and maintain.

Teledyne Valeport’s industry-leading TideMaster Tide Gauge is at the core of the Tidestation, bringing Pressure, Radar and hybrid tidal observation techniques coupled with interfaces to other meteorological and 3rd party systems.

All data can be recorded locally and broadcast to a central command and control point as required.

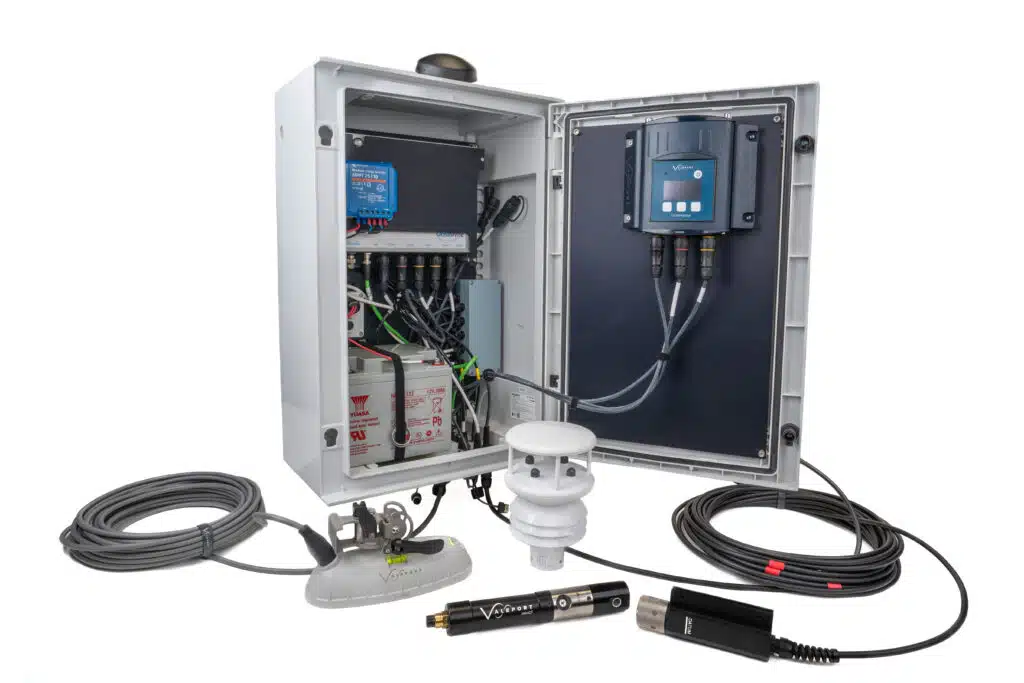

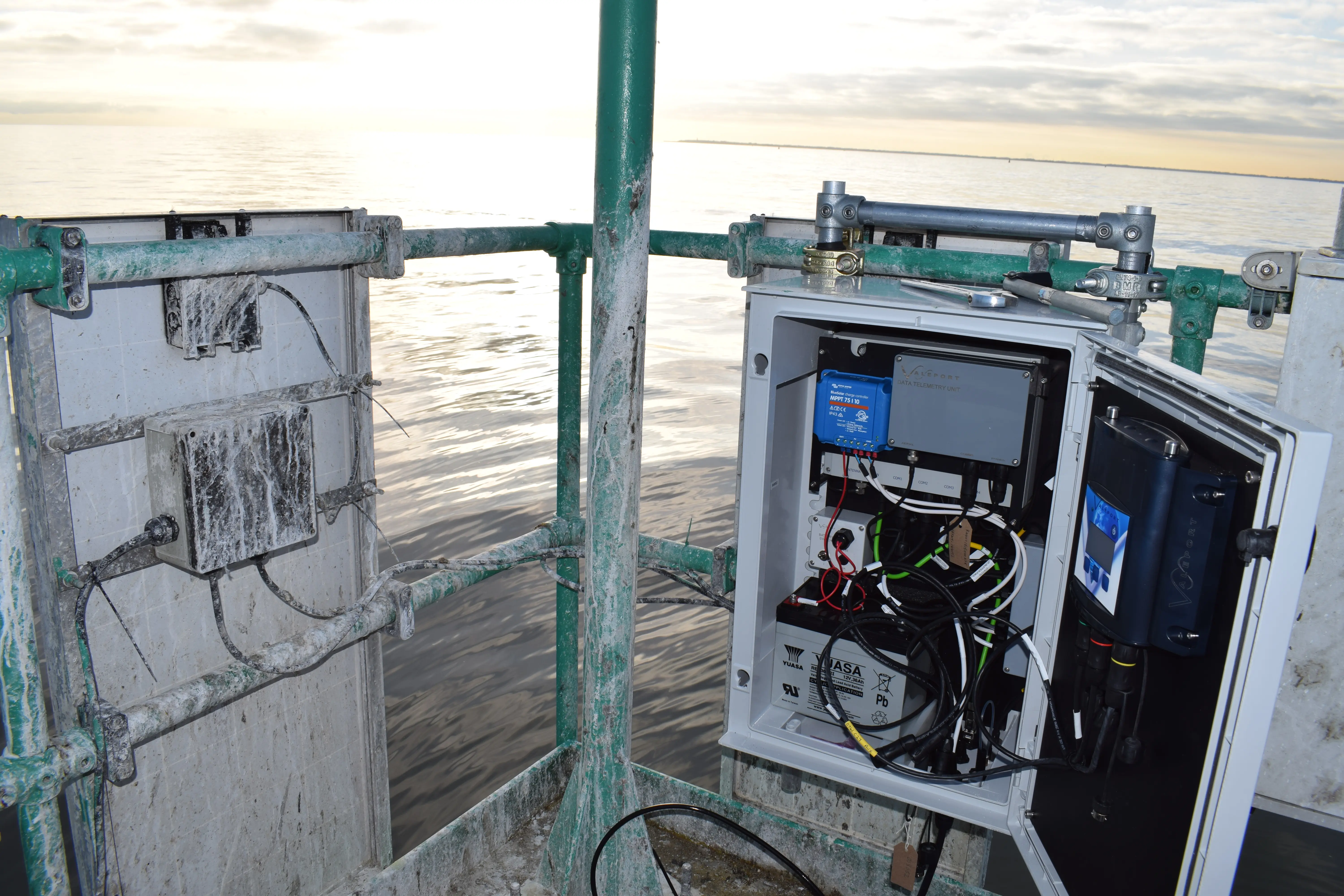

Within the TideStation enclosure is all the ancillary infrastructure required to maintain power to the Tide and Met equipment interfaced and the chosen communications systems. There are two standard TideStation variants: Option 1 – Single Port ipBuffer, TideStation Junction Box, optional Satel UHF radio. Configuration Example: TideMaster, VEGAPULS C23 Radar and Pressure Sensor. Option 2 – 4 port ipBuffer, TideStation Junction Box, optional Satel UHF radio. Configuration Example: TideMaster, VEGAPULS C23 Radar, Pressure Sensor, miniCT, MetConnect (Metpak) Weather Station, plus other instruments.

Port Log

Teledyne Valeport recommend Port Log software from Oceanwise

Support

TideStation Permanent Operating Manual
Download
Yuasa NP38-12 Industrial VRLA Battery MSDS
Download
Yuasa SDS-01-VRLA battery MSDS
Download

Software

TideMaster Express
Download

Technical Specifications

Tidal Observation

Pressure Transducer Option

Type
Vented strain gauge with stainless steel mounting bracket
Range
Standard 10dBar (~10m), with 20m cable Other ranges and lengths available
Accuracy
±0.1% of full scale

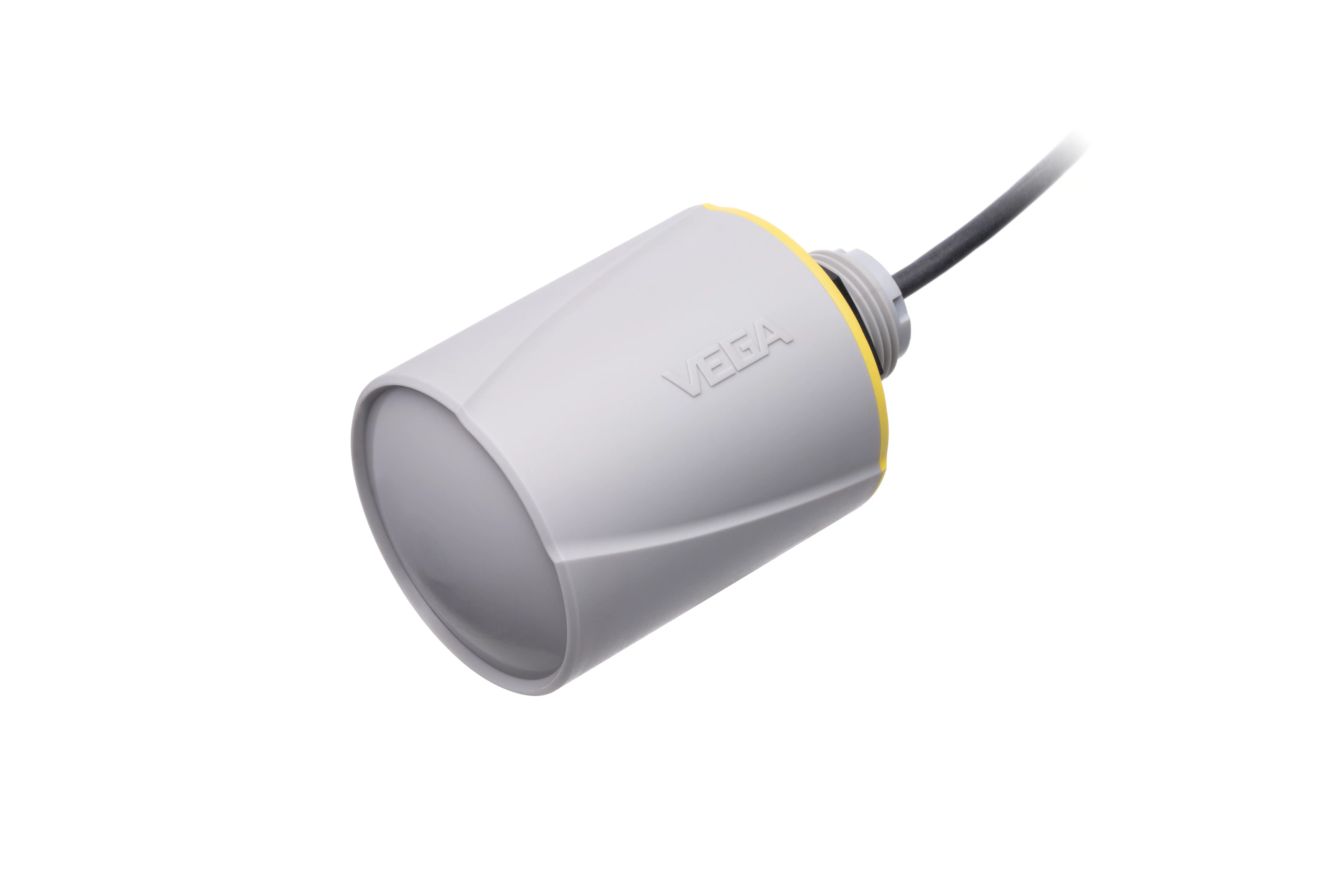

Radar Level Sensor Option

VEGAPULS C23

Minimum Range
0.1 m
Maximum Range
30 m
Beam Angle
4°
Frequency
80 GHz
Accuracy
±2 mm
Precision
<2 mm
Range
See datasheet for list of radius at different ranges

Weather Sensor Options

WindSonic Ultrasonic Anemometer

Wind Speed
0-60m/s
Wind Direction
0-359°
Calibration
Held within sensor
Dimensions
142mm x 160 mm

MetConnect (Metpak) Weather Station

Wind Speed
0-60m/s
Wind Direction
0-359°
Air Temperature
-35°C to +70°C
Relative Humidity
0 – 100% RH
Barometric Press
600 – 1100 hPa/mBar
Dew Point
As per temperature range
Calibration
Held within sensor
Dimensions
142mm x 274mm

Enclosure Configuration

• IP64 TideStation enclosure and Internal frame
• Power supply:
– Lead Acid battery module (38Ah) (could be sourced locally)
– 12V regulator for solar power charging
• Fittings for:
– TideMaster
– Telemetry option: UHF see datasheet for full details
– Auxiliary comm ports
– Pressure relief valve

The TideStation Junction Box and wiring loom are fitted for ease of set up and the flexibility to reconfigure/expand the system at a later time

Ordering

There are 2 standard TideStation variants

0741020-0
Bare Base Station power loom, Solar PV charging and comms
0741020-1i/p
Single Port ip.Buffer
TideStation Junction Box and wiring
optional Satel UHF radio
Configuration example
TideMaster, VEGAPULS C23 and Pressure Sensor
0741020-4i/p
4 port ip.Buffer
TideStation Junction Box and wiring
optional Satel UHF radio
Configuration example
TideMaster, VEGAPULS C23, Pressure Sensor, miniCT, MetConnect plus other instruments
To interface other sensor packages please contact Teledyne Valeport for details
