Model 001 Flowmeter

Ease of operation makes the Valeport ‘Braystoke’ Model 001 flowmeter ideal for field study use and an invaluable tool for hydrometric work.

Ease of operation makes the Valeport ‘Braystoke’ Model 001 flowmeter ideal for field study use and an invaluable tool for hydrometric work.

It provides a cost-effective and reliable method of monitoring flow in a variety of environments, including salt, fresh and effluent water, from shallow streams to tidal waterways. The meter benefits from the design of the impeller bearings, which give low threshold velocity and consistent performance. Available as either wading or a suspension set, all systems are supplied with the Model 0012B real-time control display unit.


Model 001 Datasheet
Model 001 Operating Manual
CDU Express Operating Manual


CDU Express

Technical Specifications


8011 series High Impact Styrene Impeller
125mm diameter by 270mm pitch
0.03 to 10m/s
±1.5% of reading above 0.15m/s
±0.004m/s below 0.15m/s

The larger impeller of the Model 001 gives three key benefits over the smaller Model 002:

Lower stall speed - greater surface area means that the minimum water speed required to turn the impeller is lower.
Higher top speed - longer pitch means less revolutions for any given speed of water, so a greater speed range is possible.
Higher accuracy - any variations in manufacturing tolerance, wear and tear, or deployment technique will have less effect on the larger impeller than on
the small one.


Both instruments are offered as standard with a “Group Calibration”, according to BS ISO 2537:2007.
Within limits, the performance of an impeller is primarily a function of its shape, provided that its bearings work and it is spinning freely. Since all our impellers are manufactured to the same standard shape, we guarantee that they fall within the tolerances of the group calibration, as given above.
Note that the Group Calibration for each impeller is up to 3m/s - calibration above 3m/s is by linear extrapolation. Specific calibration of any individual impeller may be performed on request, at Valeport’s own premises up to 1m/s, or through a third party for higher speeds.

Data Acquisition

The Model 001 Flowmeter is supplied with a dedicated surface display unit, the Model 0012B. As the impeller rotates, it opens and closes a magnetic reed switch, generating pulses. The Model 0012B measures the frequency of these pulses, and uses the calibration equation to calculate speed of flow from the pulse frequency.
Data may be averaged over any number of seconds from 1 to 600, or according to number of impeller revolutions. The Model 0012B will display real time speed data, as well as the result of the data average, together with a Standard Deviation figure to give added data confidence. A solid-state memory records all results, and the data may be downloaded to PC using the RS232 interface lead supplied.


Wading Set

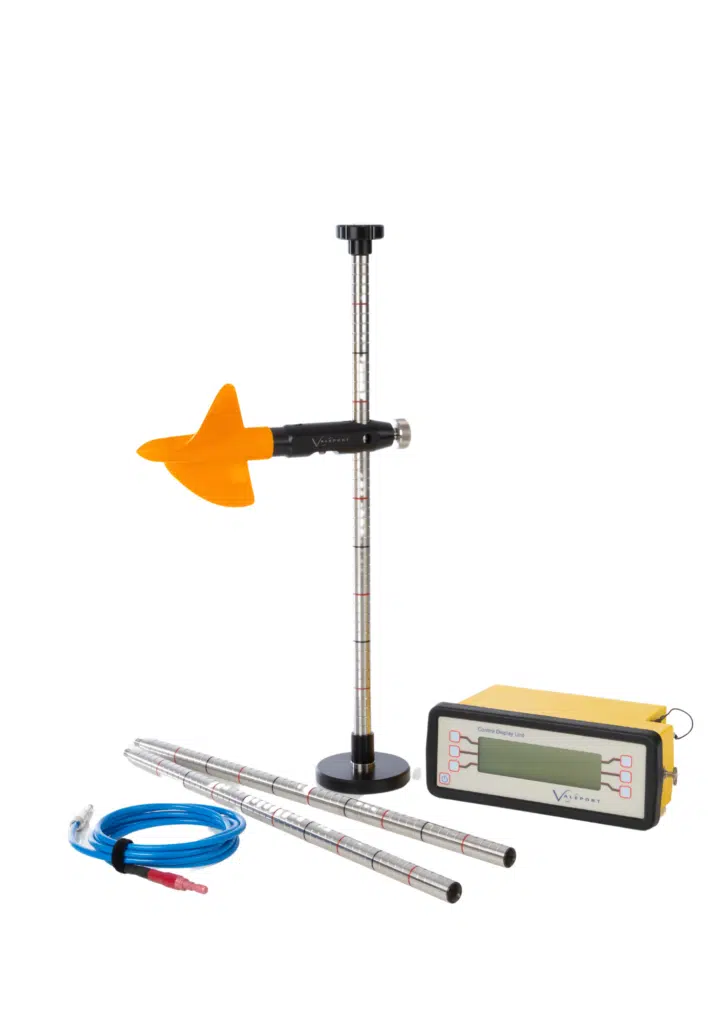

Designed for hand held use, with the operator standing in the channel, holding the instrument in position. The system is supplied with 1.5m wading rod (3x 0.5m sections), graduated in cm, and a 2m cable from instrument to display unit. Alternatively, a “top-setting” wading rod system is available, which allows the vertical position of the instrument to be set without removing the wading rods from the water.
Suspension Set
Designed for hand suspension use, with the operator lowering the instrument on a cable into deeper water or from a high bridge. System includes a 35m suspension cable, together with an extended tail fin for ensuring that the instrument is aligned into the water flow. A range of streamlined weights is also
available to aid suspension deployments - contact Valeport for details. Also available is a “Conversion Kit”, which contains all the necessary additional parts to allow a Wading Set to be used as a Suspension Set.


System is supplied with CDU Express Windows based PC software, for data extraction from display unit. CDU Express is licence free.


Model 001 Wading Set
Model 001 Suspension Set
Model 001 Conversion Kit
Top Setting Wading Rods
