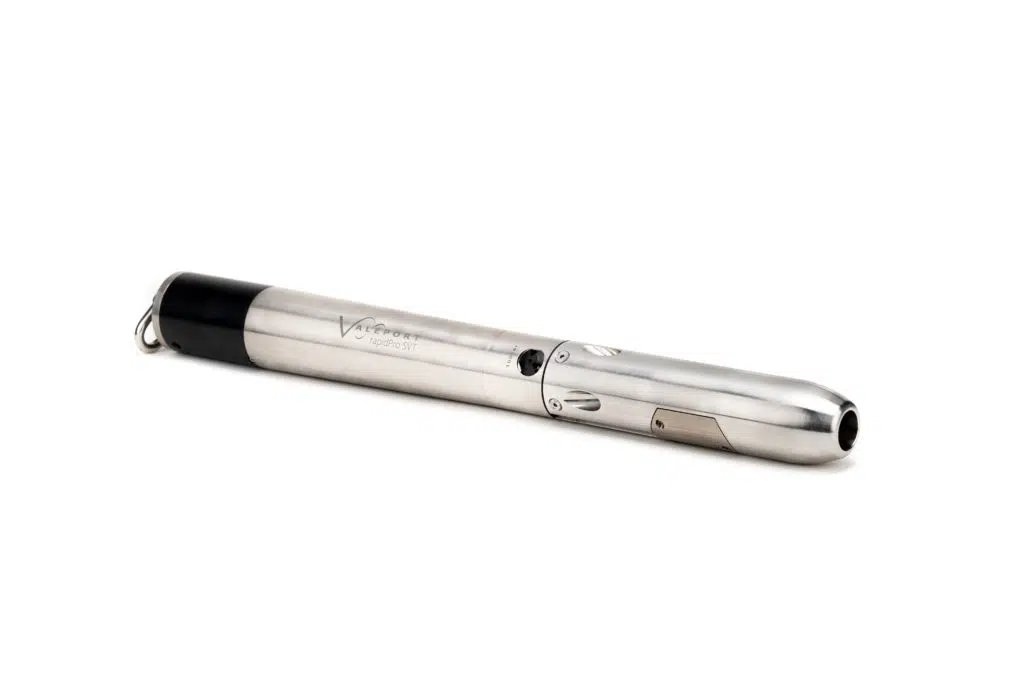

rapidPro SVT

Rapid collection of sound velocity profiles with no compromise in the quality of the data is the rapidPro SVT’s great party trick.

It has now been further developed with a new optimised shape and removable ProLogger module that combines a rechargeable lithium ion battery, data logger, GPS receiver and Bluetooth comms module. Accurate Sound Velocity with virtually instantaneous response time, data acquisition rates of up to 32Hz housed in a low drag housing result in the highest quality profiles at drop rates up to 5 m/s.


Support

rapidPro SVT Datasheet
rapidPro Operating Manual
Connect Operating Manual

Software

Connect
1.0.7.0
Connect iOS
1.5.12

Technical Specifications

Sensor Specifications

The rapidPro SVT is fitted with Valeport's digital time of flight sound velocity sensor, strain gauge pressure transducer and Thermistor temperature sensor.

Sound Velocity

Range:
1375 - 1900m/s
Resolution:
0.001m/s
Accuracy:
±0.02m/s
Response:
31.25 milliseconds

Pressure

Range:
200 Bar (max)
Resolution:
0.001% range
Accuracy:
±0.01% range
Response:
31.25 milliseconds

Temperature - high performance Thermistor

Range:
-5°C to +35°C
Resolution:
0.001°C
Accuracy:
±0.01°C
Response:
50 milliseconds

Data Acquisition

Sample Rate: dependent on configuration

Rate
16Hz
32Hz
SVP
Temperature


The temperature sensor gives valuable information about the physical structure of the water column.
Depth Resolution
~40cm
~20cm

Communications

Through the ProLogger an integral Bluetooth module for configuration & data recovery also, when removed from the rapidPro housing USB serial comms directly to a PC.

Memory

The rapidPro SVT Profiler is fitted with an SD card with more than sufficient capacity

Electrical

Battery:
Rechargeable Lithium Ion battery module
Battery Life:
approximately 20 hours continuous operation from a fully
charged pack*

*battery consumption estimates are based on recording down casts only at 8Hz observation
period

Ordering

0660046-TS-100
rapidPro SVT Profiler with Sound Velocity, Pressure (1000m) and Temperature (Thermistor)
0660046-TS-200
rapidPro SVT Profiler with Sound Velocity, Pressure (2000m) and Temperature (Thermistor)
Supplied with:
· 1x ProLogger module
· 2x switch keys
· Bluetooth module with external antenna and cable
· Tool kit
· Valeport Connect PC software
· Operating manual and system transit case

Physical

Materials:
Titanium/PEEK housing
Stainless steel 316 nose casting
Titanium & composite sensor components
Depth Rating:
2000m
Instrument Size:
Ø62mm x Length 605mm
Weight:
4.5kg (in air)

Software

System is supplied with Valeport Connect PC software, for instrument setup, data extraction and display. Valeport Connect PC software is license free
