SWiFT Deep CTD

Designed for a seamless workflow. The new SWiFT Deep CTD is the latest in Valeport’s popular range of SWiFT profilers and delivers enhanced accuracy and versatility for those requiring CTD measurements to depths of 6000m.



Measured CTD with all the benefits of the SWiFT

The new SWiFT Deep CTD profiler provides survey-grade sensor technology coupled with the convenience of Bluetooth® wireless technology, rechargeable battery and an integral GNSS module to geo-locate each profile.

Ease of use is at the heart of the SWiFT range and the new SWiFT Deep CTD not only makes any problematic battery changes a thing of the past and delivers fully-automated data transfer with no user input required, it also features Valeport’s signature SWiFT magnetic switch ring. The switching ring is easy to operate even with cold hands, it simply turns through 90 degrees and reassuringly clicks into position. The end cap features user-friendly LED indications for operational status, GNSS, battery and Bluetooth® wireless technology.

Enhanced accuracy

Using Valeport’s world-leading high-accuracy sensor technology to combine sensors for multiple profiles in a single drop, the SWiFT Deep CTD features a new fast response temperature probe and operates down to 6000 m as standard, delivering directly measured Conductivity, Temperature and Depth. In addition, the SWiFT Deep CTD will provide computed Salinity, Density and Sound Velocity, calculated using the UNESCO international standard algorithm and Chen and Millero equation.

SOFTWARE

Download and review data with Valeport Ocean

Data can be easily and quickly downloaded and reviewed wirelessly, via Bluetooth®, using Valeport’s new Ocean software for Windows, iOS and Android and instantly shared, in industry standard data formats through email and cloud services. A USB Cable and Bluetooth adapter are provided.

Download on the App Store Get it on Google Play

Download for PC

Multiple Applications

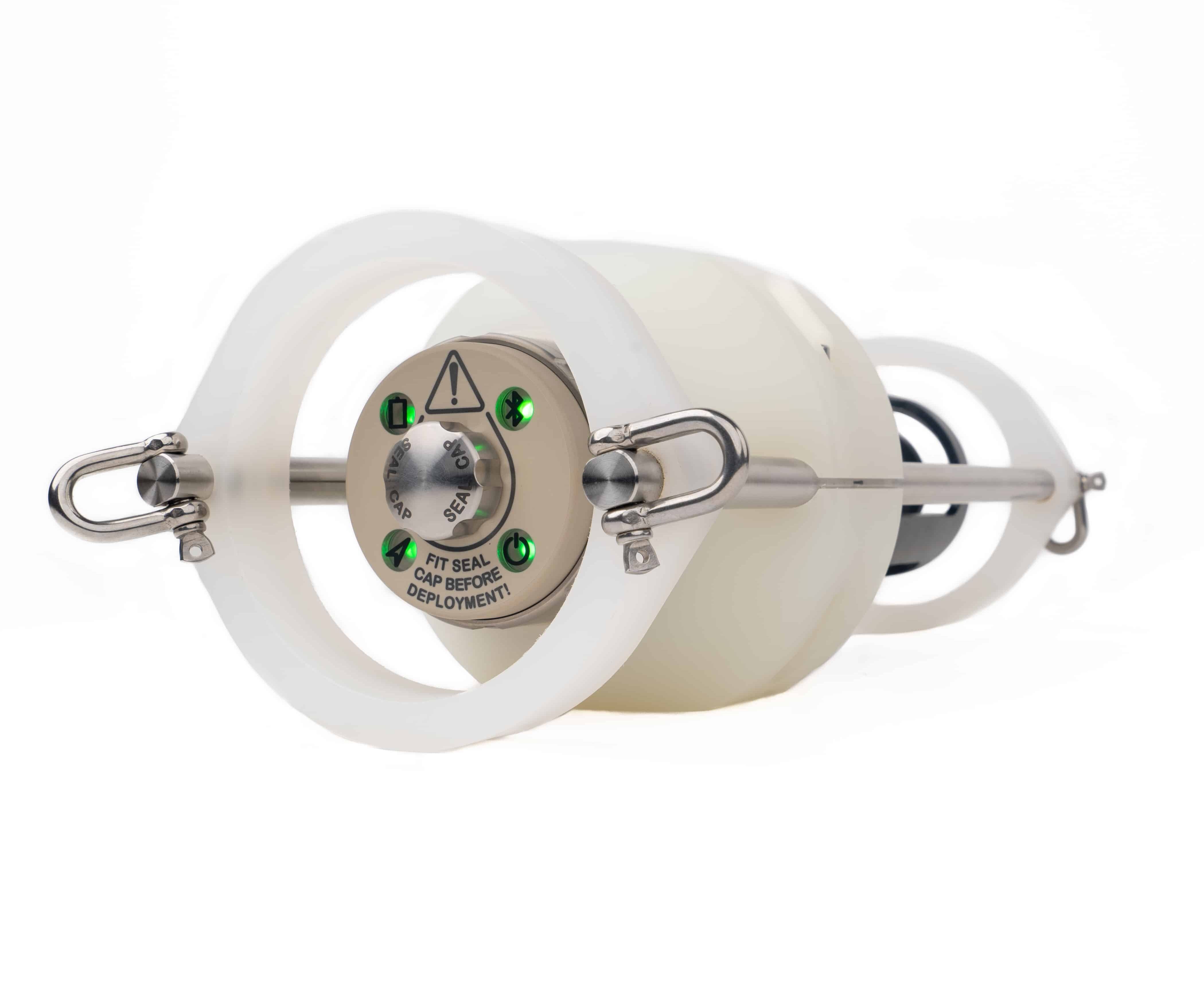

With a deployment cage, large internal Lithium-ion rechargeable battery and the convenience of charging via USB, SWiFT Deep CTD is intended for hydrographic and offshore use to 6,000m and offers the highest quality CTD profiles in a compact, robust and portable
package.

The story of SWiFT

From Belgium to Brazil, one of Valeport’s most successful profiling instruments is delivering results across the globe. But where did SWiFT start and how did it develop? Jay Nicholson, Head of Research and Development gives a glimpse behind-the-scenes at Valeport.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Valeport Ltd is under license. Other trademarks and trade names are those of their respective owners.

Google Play and the Google Play logo are trademarks of Google LLC

Support

SWiFT Deep CTD Datasheet
Download
SWiFT Deep CTD Operating Manual
Download
Technical drawings

Software

Valeport Ocean - Windows
Download

Requires Window 10.0 or later.

Valeport Ocean - iOS
Download

Requires iOS 8.0 or later.
Requires iPadOS 8.0 or later.

Valeport Ocean - Android
Download

Requires Android 5.0 and up

Technical Specifications

Sensor Specifications

The SWiFT Deep CTD is fitted with Valeport’s conductivity sensor, temperature compensated piezo-resistive pressure transducer, a new fast response thermistor temperature sensor.

Conductivity

Range
0-80 mS/cm
Resolution
0.001 mS/cm
Accuracy
±0.01 mS/cm

Temperature

Range
-5 °C – +35 °C
Resolution
0.001 °C
Accuracy
±0.01 °C

Pressure

Range
100, 200, 300 or 600 Bar
Resolution
0.001% FS
Accuracy
±0.01% FS

Calculated Parameters and Accuracy

Calculations based on the UNESCO international standard algorithm and Chen and Millero equation

Sound Velocity
~0.25 m/s
Salinity
±0.01 PSU
Density
±0.01 kg/m³

Physical

Materials
Housing - Titanium | Sensor Guard - acetal |
Temperature Sensor - titanium | Pressure Sensor - titanium |
Conductivity Sensor - polyurethane coated titanium with ceramic core
Deployment frame – 316L stainless steel and polyurethane
Depth Rating
6000 m rated housing (operation subject to pressure transducer fitted)
Dimensions
ø80 mm x Length 330 mm
Weight
2.9 kg (in air) / 1.7 kg (in water)

Communications (set up and data offload)

USB
Serial
Bluetooth wireless technology
v4 - low energy

Electrical

Battery
Internal rechargeable Li-ion battery pack
Battery life
5 days continuous operation
Up to 30 days sample scenario dependant
Charging
USB
Typically, 1 hour fast charge will give 12 hours operation

Software

iOS and Android Valeport Ocean App for Bluetooth compatible mobile devices – instrument set up, data offload, display and translation to common data formats. Valeport’s Ocean PC software, with both USB cable and Bluetooth connectivity, for instrument setup, data extraction, display and translation to common data formats. Instruments and data time is sychronised to GNSS, UTC.

Instrument and data time is synchronised to GNSS, UTC

Ordering

0660050-XX
SWiFT Deep CTD Profiler
Titanium housing rated to 6000 m
Deployment cage
Supplied with
PC Bluetooth adapter
USB interface and charging cable 1.5 A charger
Valeport Ocean software
Operating manual
System transit case
